Featured Case Study

Telecommunications front- and back-office portal

completed

energy

What it’s about

We created a telecommunications information system that aggregates and connects data on employees, telephone numbers, invoicing agents, devices, and contracts, using direct, vendor-specific interfaces.

Handled aspects

DotWhite was key to bringing this software to life

Initial Concept and use cases
Mockups and sketches
Architecture design
Proof of Concepts
Team configuration and sizing
Project setup
Methodology and project ceremonies
Design
UI/UX
Development
Testing
Release planning
CI / CD
Cloud deployment

Project description

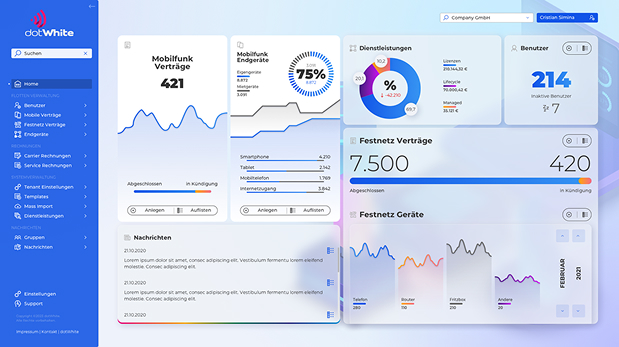

Designed to be a management portal

This web application is designed to be a management portal, Back-Office as well as Front-Office, for Mobility Devices, Phones, Tablets, Laptops, and their related entities.

Its focus is the management of the device lifecycles, their users and contracts. Additionally, the functionality also extends to reports, support activity and ordering processes, to name a few.

For ease of use, the clients can customize several parts of the application to their liking. Both the Frontend and the Backend were developed to be used as a White Label product.

Data is gathered not only by direct CRUD operations but also from semiautomated import processes, periodic B2B data retrievals and direct communication with third party services, all in a managed and secure way.

The Backend uses a Microservices architecture and is composed of several services, working behind a gateway, while the Frontend is a single page application using ReactJS, Redux and DevExtreme components.

The entire system is hosted in Microsoft Azure, in both dedicated CentOS Linux Virtual Machines as well as Azure Service Apps.

Design

Over 200 screens were custom designed by dotWhite using Sketch and Figma. Consistency was achieved using a Design System.

Details

Methodology: Agile (Scrum/Kanban), supported by Azure DevOps and the Atlassian Products Suite (Jira, Confluence, Bitbucket, Bamboo)

Languages: C#, JavaScript, HTML, CSS, T-SQL

Stack: .NET (Core) versions 5 through 7, ASP.NET Web API, SignalR, ReactJS, Redux, Entity Framework Core, OData, DevExtreme, NPOI, Ocelot

CI/CD: Bamboo, later through Azure Pipelines (with Docker)

Design: Sketch, Figma and Icons8

Some mentionable features

Dive into the project details

Multi tenancy

The application is handling data from hundreds of tenants, close to 1000 tenants, each with its own separate database. This is realized with a custom implementation of the database context.

Exports

The application allows several export formats (csv, excel, pdf) of business-related reports, as well as custom and WYSIWYG type export of data from data grids in the Frontend. Besides the instant reports, on demand reports with cross tenant data is also implemented.

Third party API

The application is set up to communicate with third party API (both ways) to handle data it is not directly responsible, but which are needed in some reports and charts.

One-time Access

Besides the normal flow of users, the application also needed a way to let certain users view a limited amount of information for a given period. Think about it as a ‘quick view’ that is sent out in an email and can be accessed without log in, if you have the link.

Audit and history

Like most management portals, an automated audit trail was implemented where all changes can be tracked in case the information is needed for an audit. On top of this technical audit trail, a history was also added which contained changes relevant to the business in a domain relevant way (so not everything was tracked, and not only direct changes but also related and side information were also tracked)

B2B

Backend job that runs automatically based on a schedule in order to keep the database in sync. It connects to third party endpoints, retrieves data for a specific tenant connection list and decides whether to insert or update data. It logs the synchronization result individually for each tenant connection and sends an email after each synchronization with summary information.

Custom fields (including filters and validation)

For certain entities, custom fields can be defined. All the other features (import, export) apply to these new fields as well. The custom fields may have localized labels, may be defined as required, validation being assured by both Frontend and Backend.

News and release information

Notification system that announced to the users whenever new articles were posted. Admins may create news articles in a separate management page, where HTML editors are used.

Migration of old clients

Using Excel import files, SQL imports and custom import tools written by us for special cases, we were able to migrate in a quick manner all data from clients of the legacy portal.

Deep linking

On the Frontend, related entities contained a link to the relevant information. For example: if a device within a grid had an owner, the name of the owner was a hyperlink to the page to that user’s information page.

Notes

Users of the application had the possibility to attach notes to certain assets. These notes were visible in a fly-over panel and could contain text information as well as file attachments. Existing notes, including attachments, were also imported from the legacy system (and updated to the new format).

Import

Automatic import system that can differentiate between insert and update and may also perform other operations such as delete or hard reset. For this feature we used NPOI library to read data from the Excel files, then we solved the technical problems of mapping, validating and operation process ourselves on the backend. For the continuous UI updates during the process, we used SignalR.

Custom persistent layout

As our assets had various fields that were not required to be always seen within the DevExtreme Grid functionality, we implemented a feature that keeps track of each user’s layout. By this, each user could determine what information is to be displayed depending on their area of interest and persist this layout between logins. Moreover, you could create several column layouts and change them with just a click. You could even share these layouts between all the users within a tenant or mark them as private.
